Module admin UI

A module’s admin UI is declarative. resources declares the data, admin declares the screens, and functions with "trigger": "admin" back the interactive parts. The dashboard renders it — a module never ships UI code. See Module manifest for the rest of the package.

Everything on this page requires "palette": 2. With palette 1 the publish endpoint rejects the newer field types, the field rules, the timeline/track/results layouts, the table/chart/ alert/results widgets, UI hooks and detail children.

"admin": {
  "palette": 2,
  "title": "UI gallery",
  "icon": "layout-dashboard",
  "order": 90,
  "pages": [],
  "dashboard": [],
  "player": []
}

Key	Meaning
palette	2.
title	Module name in the sidebar and page subtitles.
icon	Lucide icon name, e.g. sword, sliders-horizontal, layout-dashboard.
order	Sort order inside the MODULES section of the sidebar.
pages	Screens, in sidebar order.
dashboard	Blocks on the project dashboard. Only stat, action-button, table, chart, alert.
player	Blocks on the player detail page. A resource-table there must be player-scoped.

samples sits next to admin at the top level of the manifest.

Field rules

Every field in resources.*.fields and in a widget input accepts:

Key	Applies to	Meaning
type	all	Required, one of the types below.
required	all	Marks the editor with * and rejects empty values.
label, description, placeholder	all	Editor label, help text, placeholder.
default	all	Filled on create and for absent fields on update, recursively into objects and list items.
visibleIf	fields of an object, including the top level	{ "field": "kind", "eq": "json" } or { "field": "kind", "in": ["a", "b"] }. Exactly one of eq/in, the named field must be a sibling. A hidden field is not required and its value is dropped on save.
unique	top-level string, number, enum, ref	Unique per resource.
min, max	number value, string length, list item count	Inclusive, non-negative for string and list.
step	number	Positive; the value must be a multiple of it, counted from min (or 0).
pattern	string	RE2 regular expression the whole value must match.
slug	string	{ "from": "name" }; implies unique and ^[a-z0-9_]+$.
display, summary, indexLabel	list	See list below.

The dashboard applies the rules while editing; the backend enforces them on every row write, from REST, from resources.create/update inside a module, and when a sample is created. Cross-field and business rules belong in the validate hook.

Field types

string

Text input. min/max bound the length, pattern constrains the value.

string with slug

{ "type": "string", "required": true, "slug": { "from": "name" } }

Filled from the source field while the row is new, then locked.

number

min, max, step.

bool

enum

enum is required. The list page shows the value as a badge and can filter by it.

datetime

ISO-8601 string, date and time picker.

duration

Duration string such as 24h: a number plus a unit.

markdown

Write and Preview tabs.


URL string. Upload (PNG, JPEG, WebP, GIF up to 2 MB) or paste a URL. A field named in detail.image moves to the side column of the detail page.

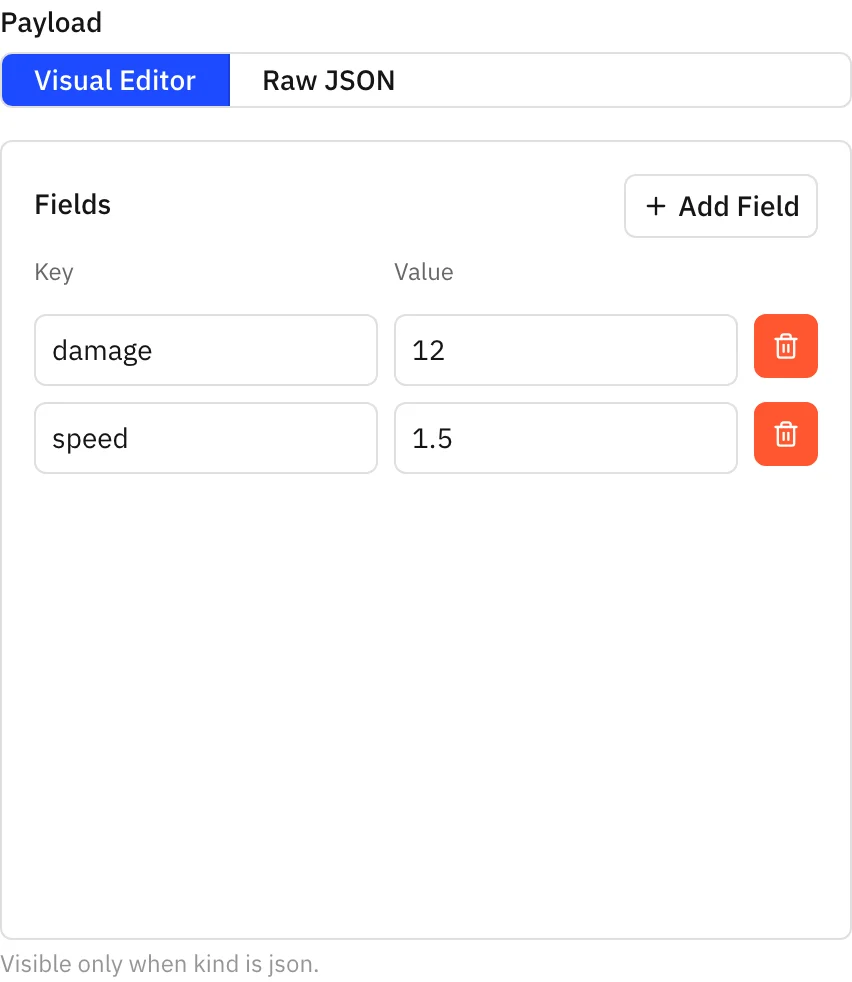

json

Free-form object in a JSON editor. The example below also uses visibleIf, so it only shows up when kind is json.

object

{ "type": "object", "fields": {
  "mode": { "type": "enum", "enum": ["default", "custom"] },
  "threshold": { "type": "number", "visibleIf": { "field": "mode", "eq": "custom" } } } }

list

items is required and can be any field, including object. Items drag to reorder and collapse.

Key	Meaning
items	The item field.
min, max	Item count bounds; max disables Add.
summary	A field of the object items shown in the collapsed header.
indexLabel	number (#1) or rank (1st).
display	tags, string items only.

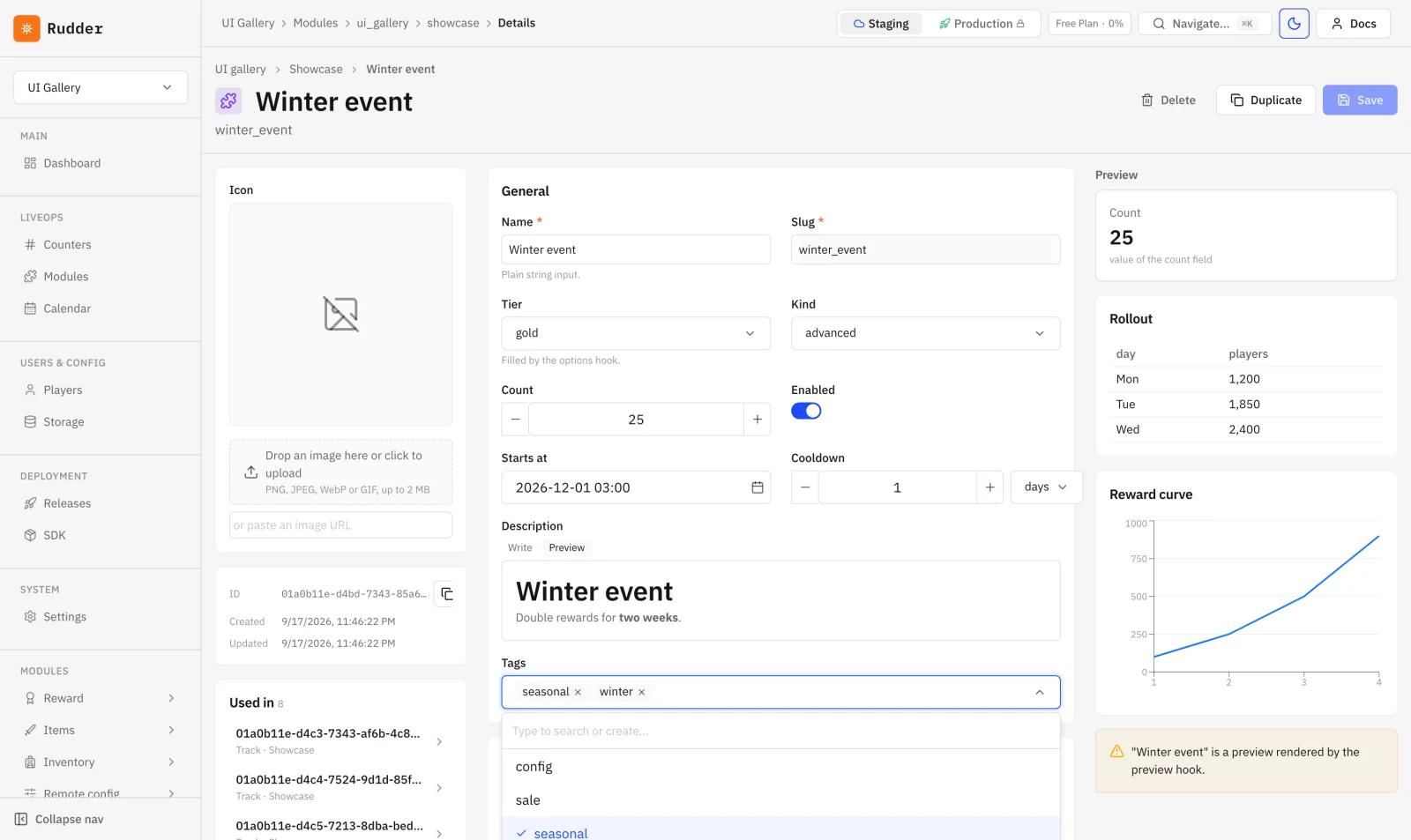

With "display": "tags" the editor becomes a creatable multi-select whose suggestions come from the values other rows use for that field.

ref

{ "type": "ref", "ref": "items", "refKey": "slug" }

ref is the target resource, refKey the field stored instead of the row id. The target row lists incoming references under Used in.

reward

Stored as { "currencies": {}, "items": {}, "counters": {} }. ref/refKey point the item picker at a resource.

price

{ "currency": "gems", "amount": 499 }, amount is non-negative.

condition

{ "counter": "matches_won", "operator": "gte", "value": 10 }. Operators: gte, gt, eq, lte, lt.

value

Typed value: { "type": "string" | "int" | "float" | "bool" | "json", "value": ... }.

map

{ "type": "map", "keys": { "kind": "currency" }, "values": { "type": "number", "min": 0 } }

keys.kind is counter, currency, item or ref (with keys.ref and an optional keys.refKey). values is any field.

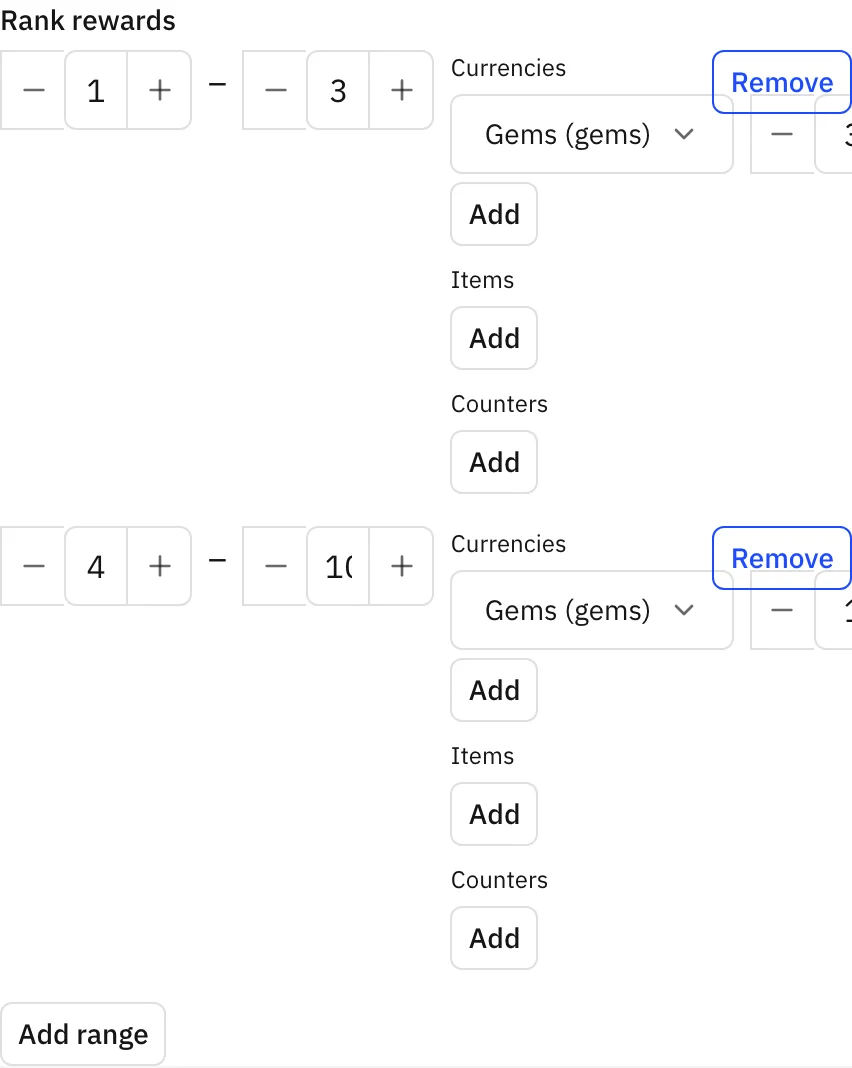

ranges

{ "type": "ranges", "value": { "type": "reward", "ref": "items", "refKey": "slug" } }

Stored as [{ "from": 1, "to": 3, "value": ... }]. The backend rejects from > to; overlapping ranges are your module’s business rule.

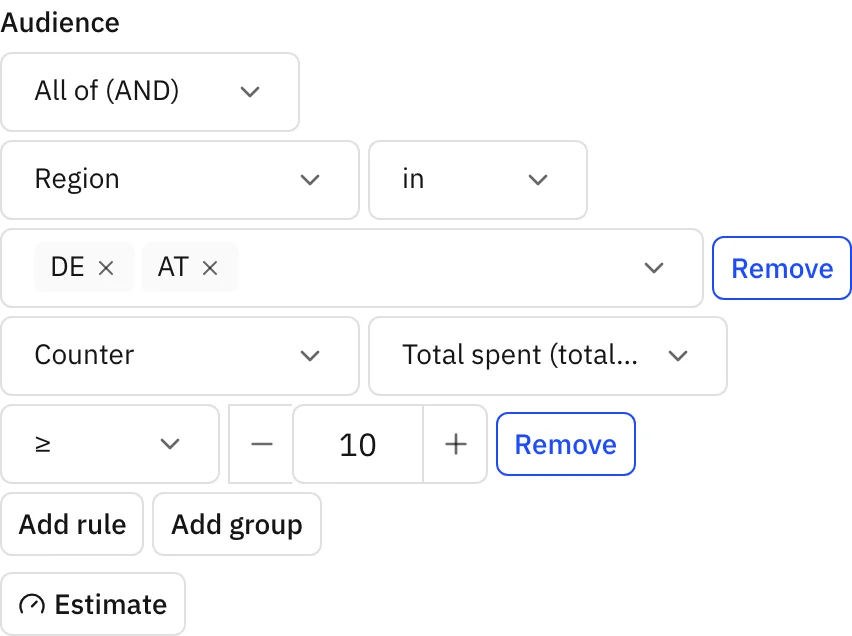

segment

A rule builder with AND/OR groups and an Estimate button that counts matching players.

Attributes: player.region, player.lang, player.payer, player.platform, player.appVersion, player.daysSinceRegister, player.daysSinceLastSeen, counter.<slug>, wallet.<currency> and bucket (needs a salt). Operators: eq, neq, gt, gte, lt, lte, in, notIn, between. An empty segment matches every player.

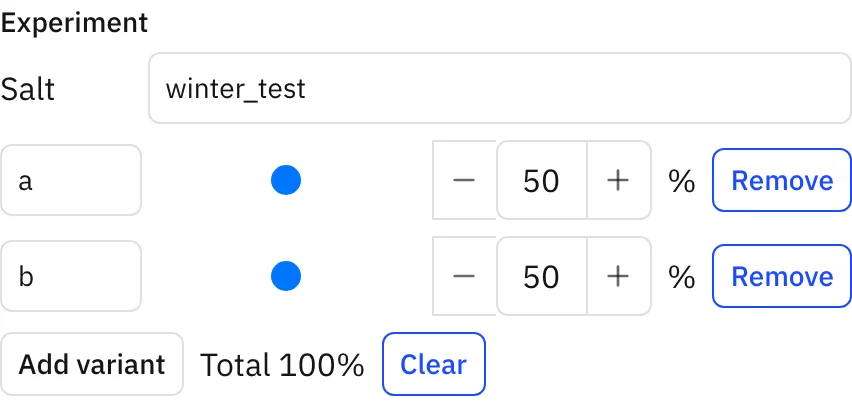

split

{ "salt": "winter_test", "variants": [{ "key": "a", "from": 0, "to": 49 }, { "key": "b", "from": 50, "to": 99 }] }

Percentage sliders. Ranges outside 0–99, overlaps and totals other than 100 are rejected. A/B tests are not a separate entity: a variant is a row whose segment includes a bucket range.

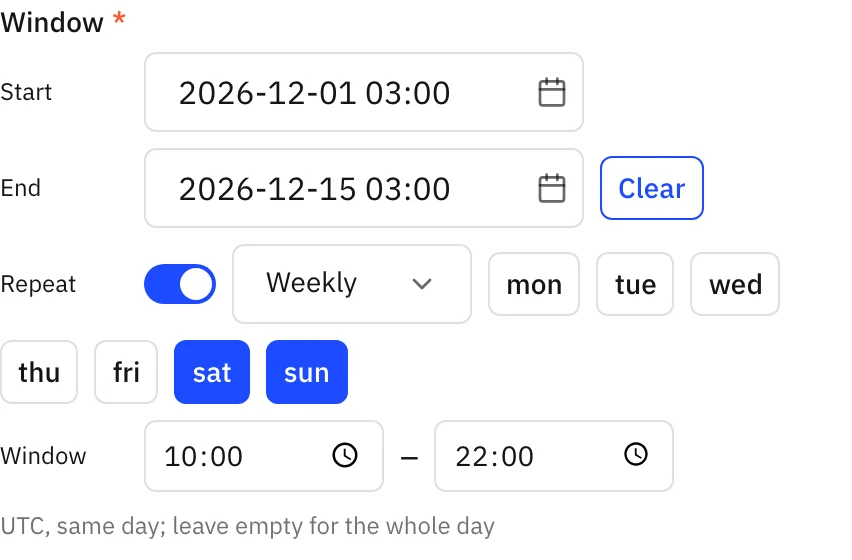

schedule

{ "start": "2026-12-01T00:00:00Z", "end": "2026-12-15T00:00:00Z",
  "repeat": { "every": "weekly", "days": ["sat", "sun"], "from": "10:00", "to": "22:00" } }

end and repeat are optional, times are UTC. An absent schedule means “no time limit”. Row listing accepts <field>_active=true, and scheduled rows show up on the dashboard Calendar.

Pages and layouts

{ "slug": "showcase", "title": "Showcase", "resource": "showcase", "layout": "table",
  "columns": ["name", "kind", "count", "enabled", "window"], "sort": "name",
  "filters": ["kind", "enabled", "tags", "itemRef"],
  "bulk": [{ "title": "Grant bonus", "function": "grantBonus", "confirm": "Grant a bonus?" }],
  "detail": {}, "hooks": {} }

Key	Notes
slug	Required, unique per module; settings is reserved.
title	Page title and sidebar entry.
resource / widgets	Exactly one of the two. A widgets page has no rows and no hooks.
layout	table (default), cards, timeline, track, results.
columns	Table columns.
sort	Field name; -field sorts descending.
filters	Only enum, bool, list and ref fields.
card	cards layout: image (an image field), title, subtitle, badges.
schedule, color	timeline only; schedule is required and must be a schedule field, color an enum field.
orderField, threshold, lanes	track only; orderField is a required number field.
score, order, player	results only.
bulk	{ title, function, confirm? }, the function needs trigger admin.
detail, hooks	Below.

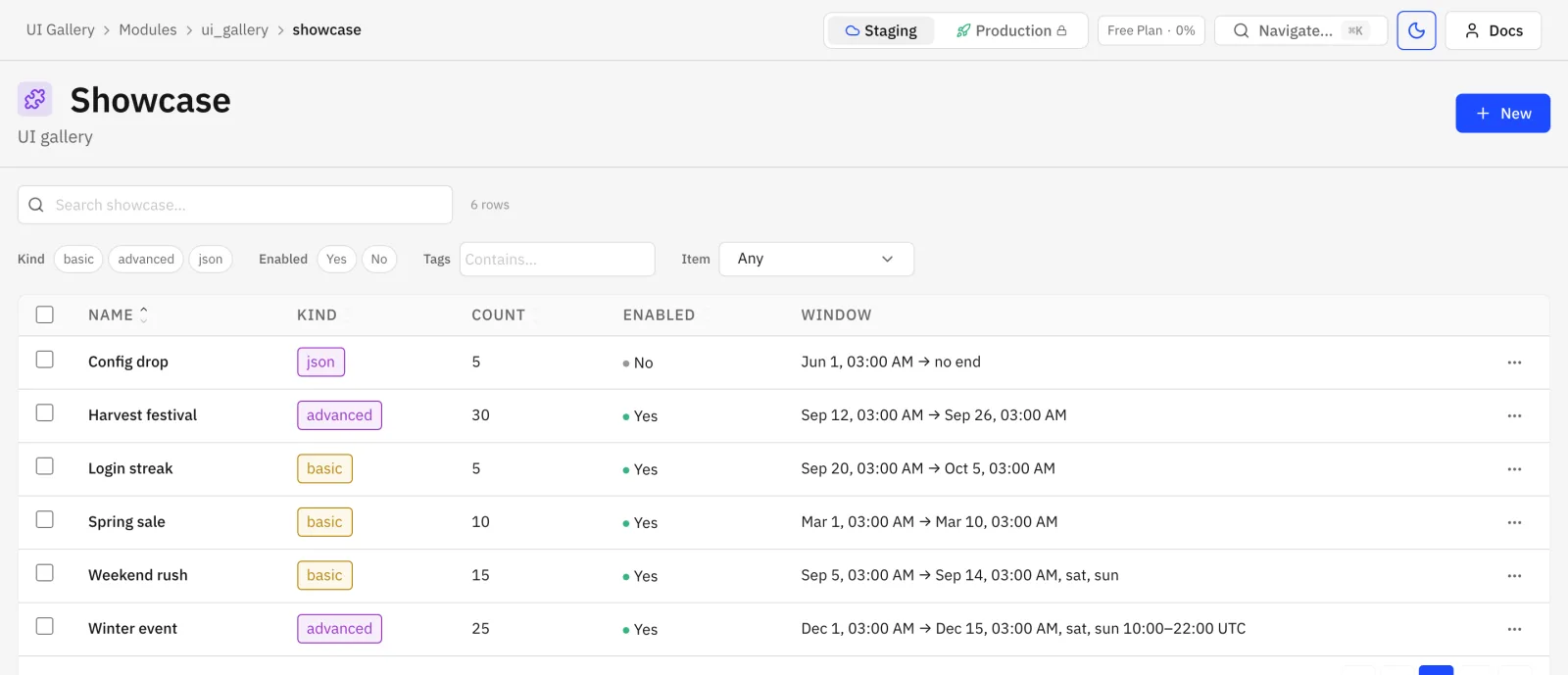

table

Search, filters, sortable columns, row selection, per-row menu.

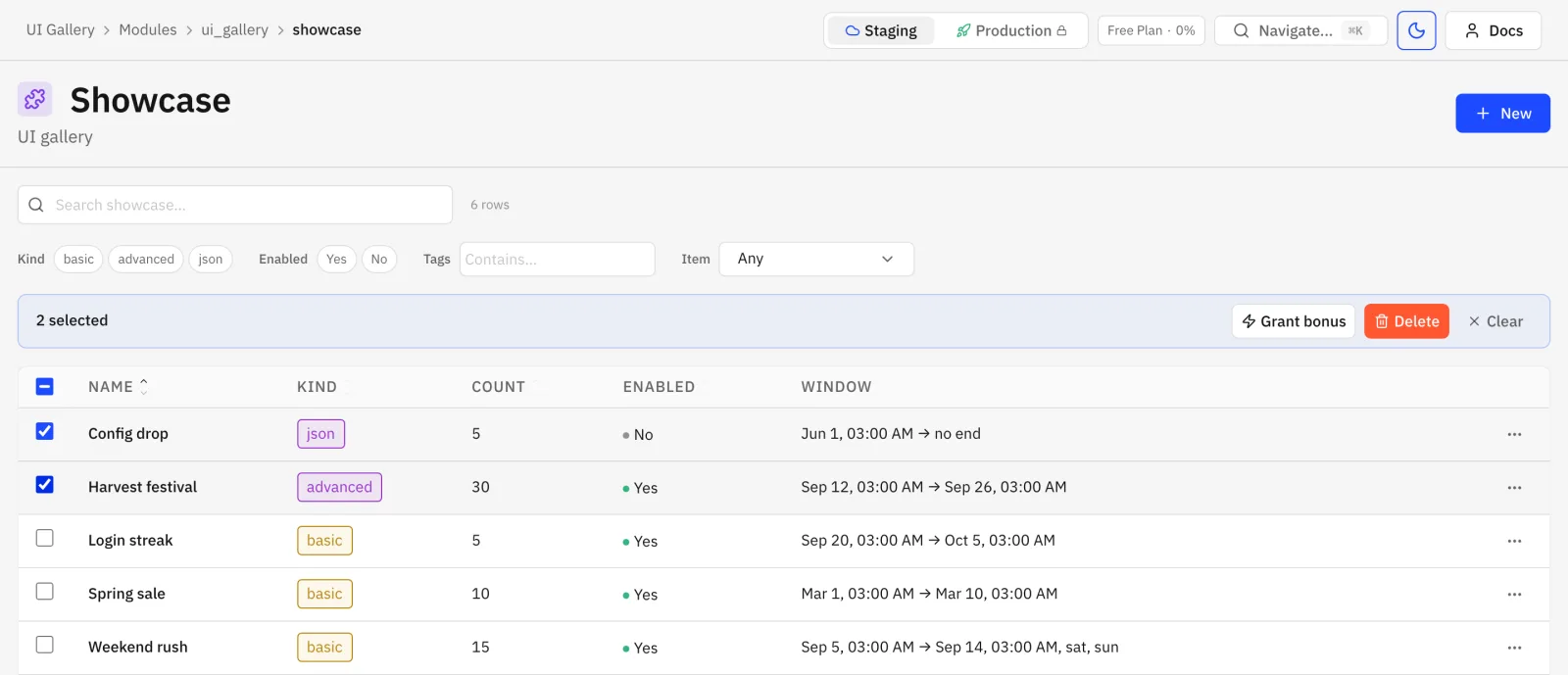

Selecting rows opens the bulk bar with the module’s bulk actions plus Delete.

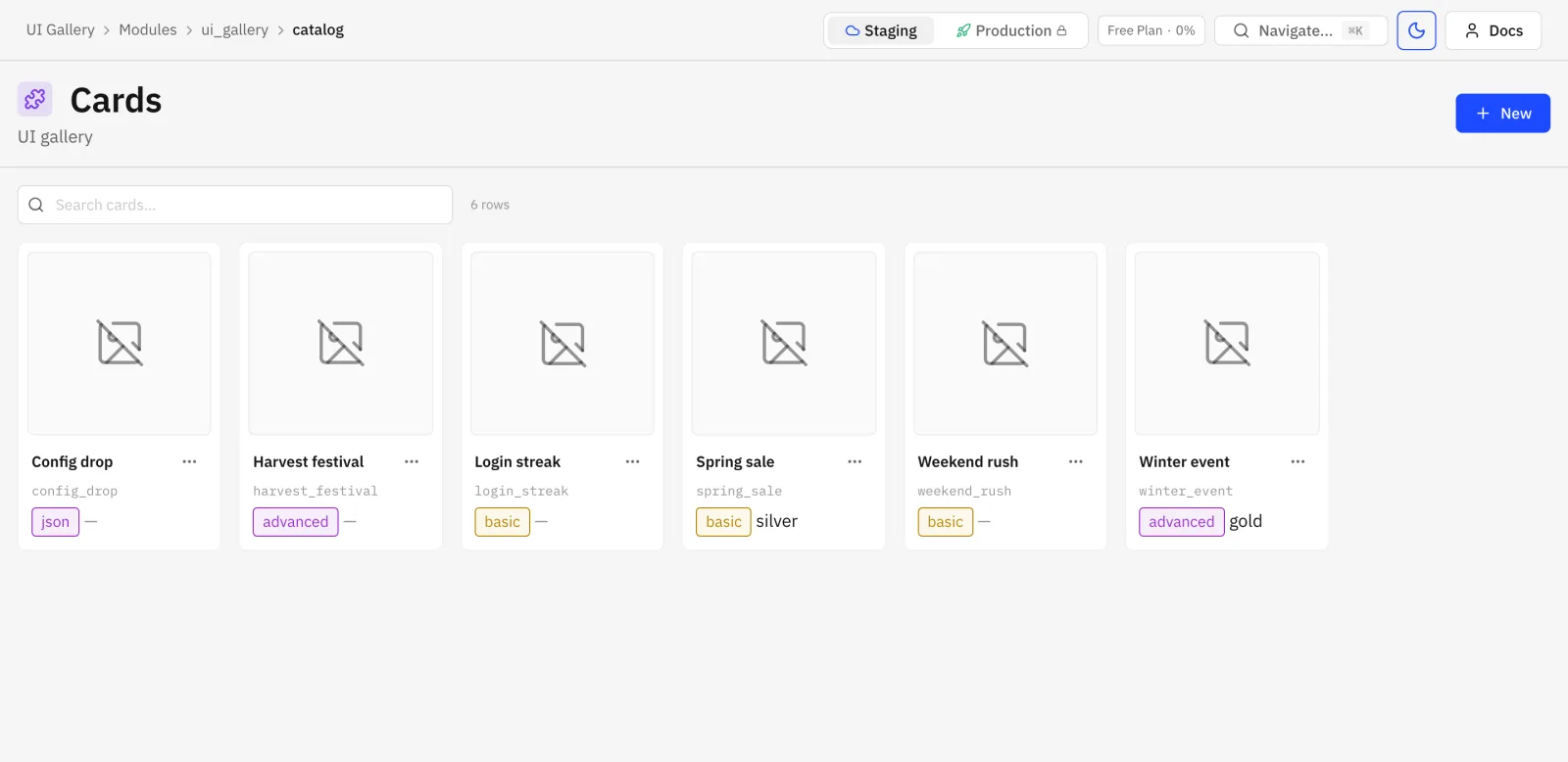

cards

{ "layout": "cards", "card": { "image": "icon", "title": "name", "subtitle": "slug", "badges": ["kind", "tier"] } }

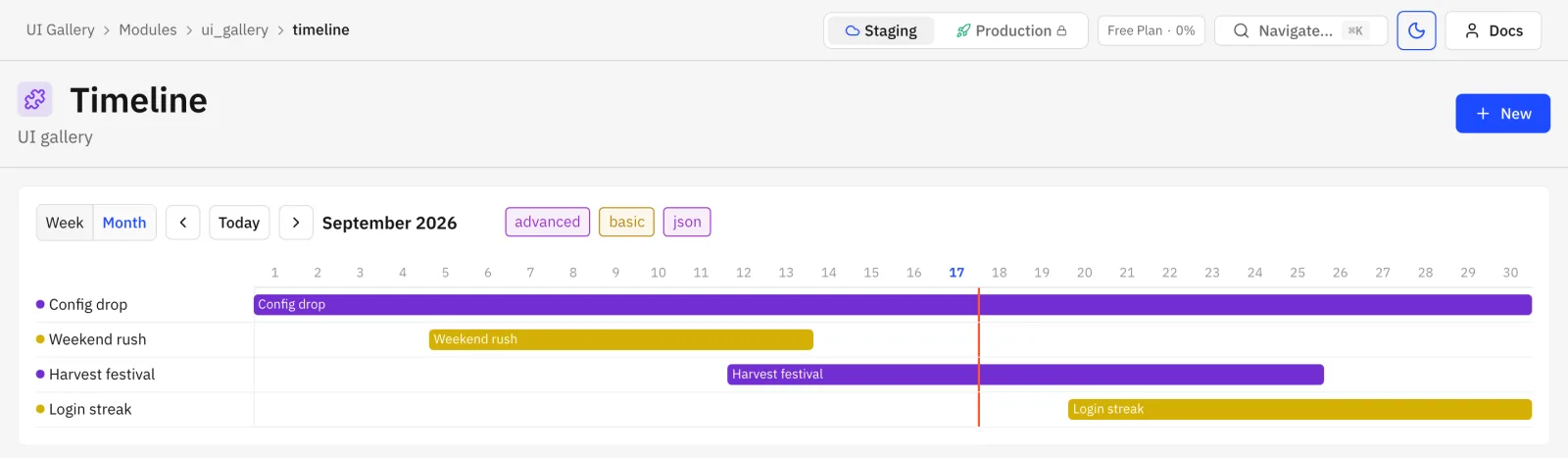

timeline

{ "layout": "timeline", "schedule": "window", "color": "kind" }

Week or month scale with a “today” marker, one bar per row. Clicking a bar opens the row.

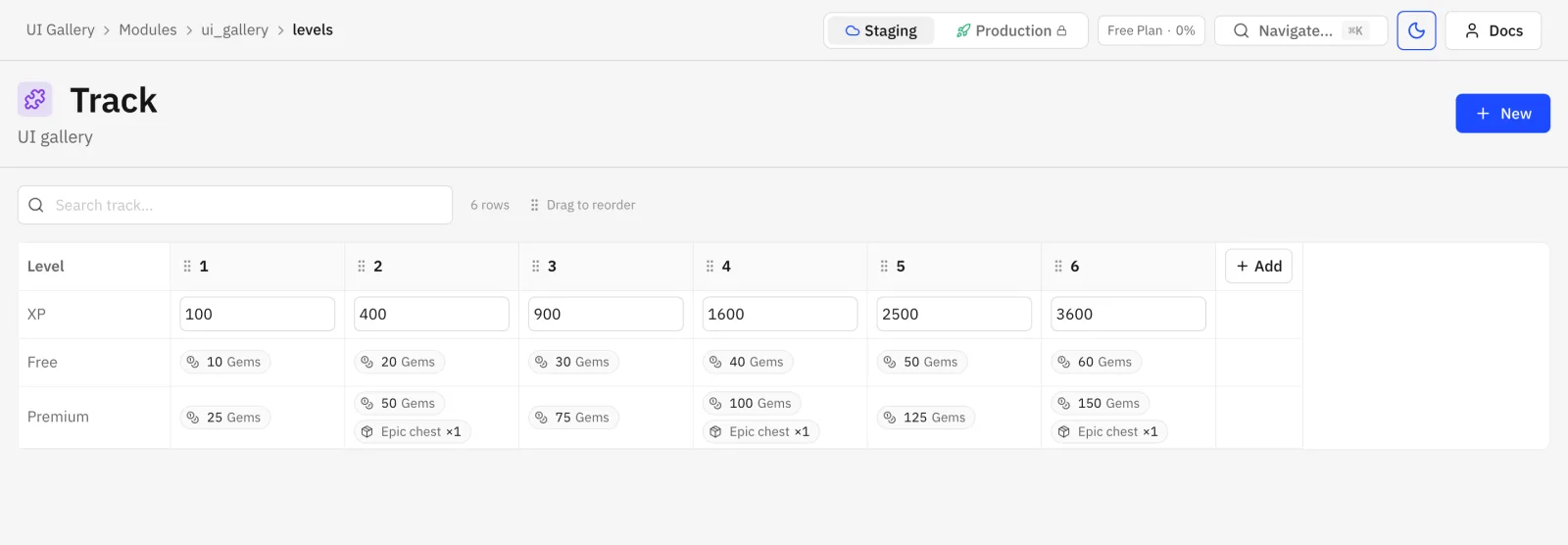

track

{ "layout": "track", "orderField": "level", "threshold": "xp",
  "lanes": [{ "title": "Free", "field": "freeReward" }, { "title": "Premium", "field": "premiumReward" }] }

Rows become columns of a ladder ordered by orderField. threshold is editable inline, each lane shows one field. Add, reorder and inline edit are supported.

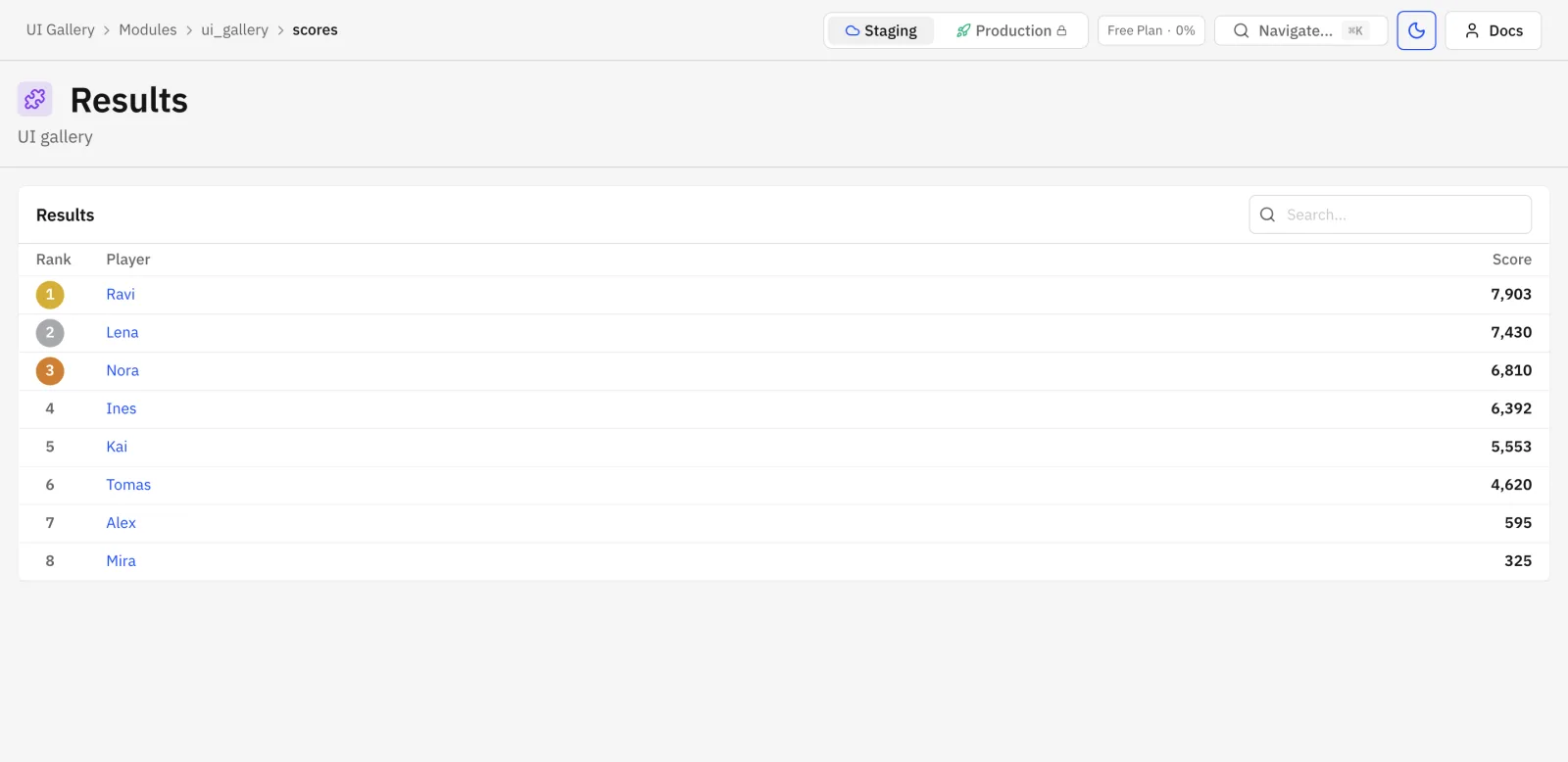

results

{ "layout": "results", "score": "score", "order": "desc", "player": true }

Ranked list with badges for the top three and links to the players. order is asc, desc or { "from": "<field of the parent row>" } (detail only). player: true needs a player-scoped resource.

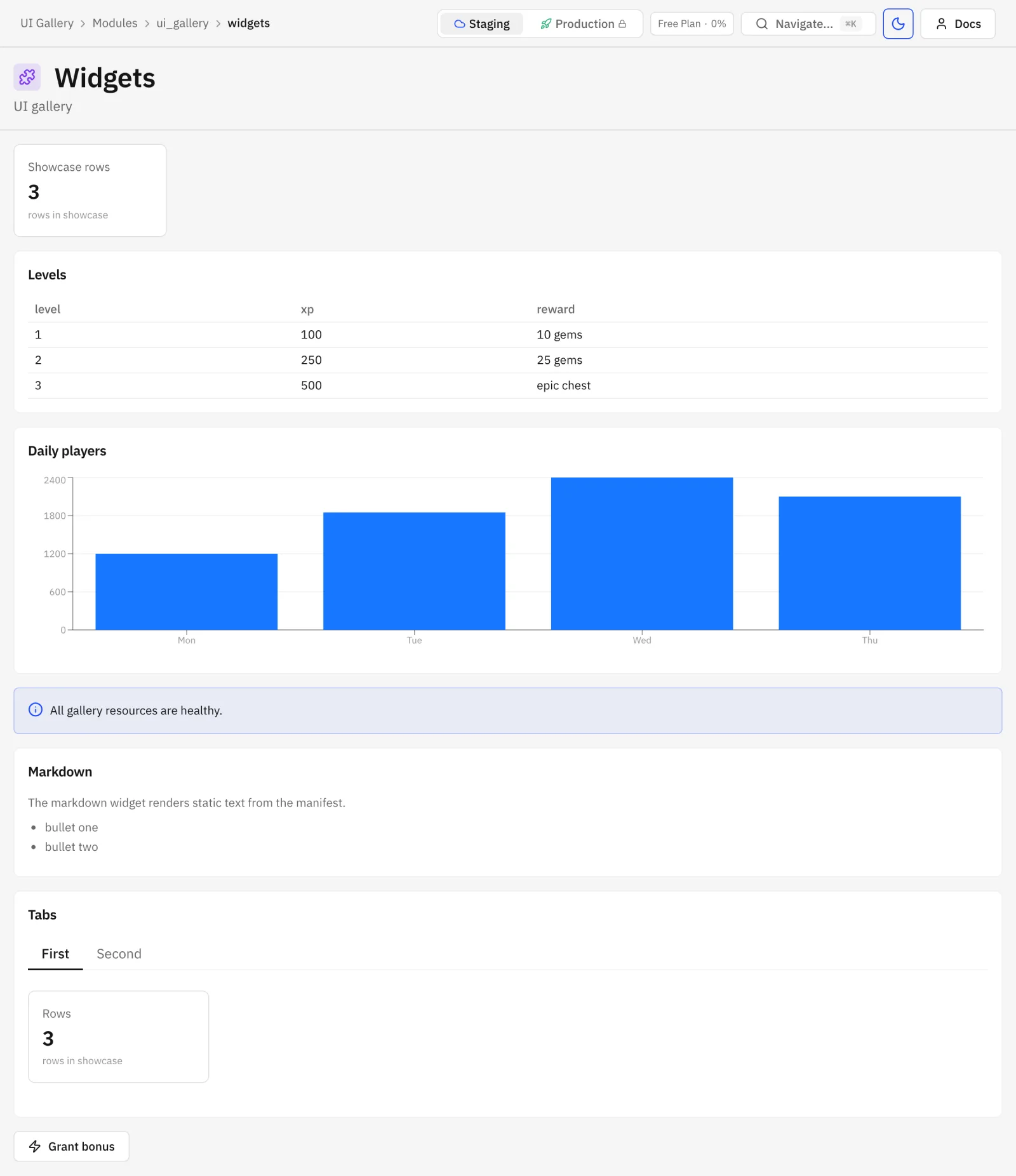

widget page

A page with widgets instead of resource renders widgets only.

Detail pages

"detail": {
  "key": "slug",
  "image": "icon",
  "sections": [{ "title": "General", "fields": ["name", "slug", "kind"] }],
  "widgets": [],
  "children": [],
  "hooks": {}
}

Key	Notes
key	Field used in the URL instead of the row id. Must be unique or a slug field.
image	An image field, rendered in the side column.
sections	{ title, fields }; a two-column grid, wide editors span both columns.
widgets	Rendered under the form. results widgets and match are allowed only here.
children	Editable child rows, below.
hooks	Below.

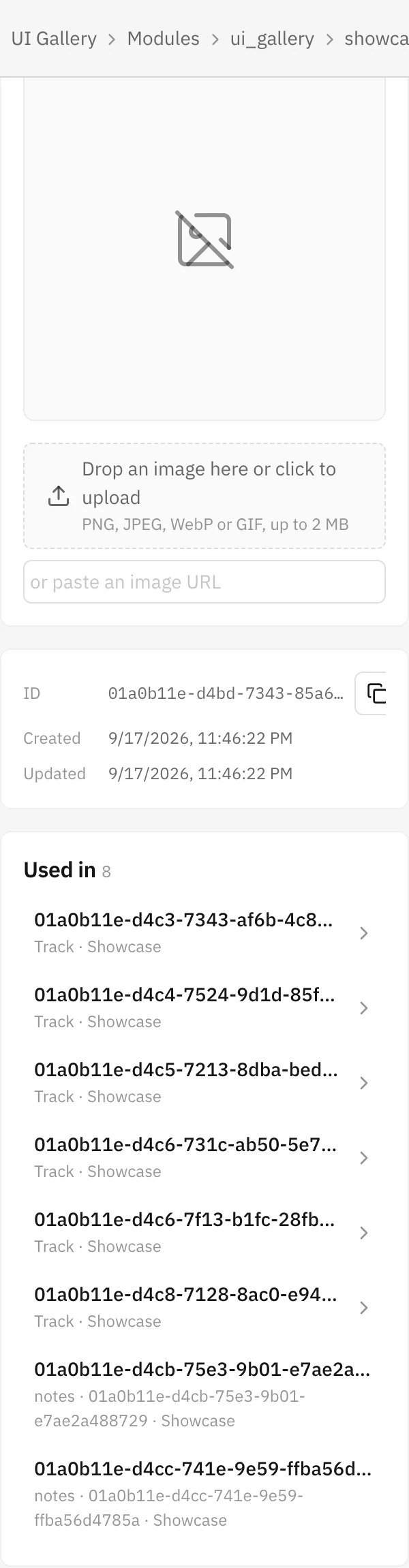

The side column holds the image, the player picker for player-scoped rows, row metadata and Used in.

A detail page with a preview panel and an options-driven select open:

Creating a row from a list page opens the same editors in a drawer.

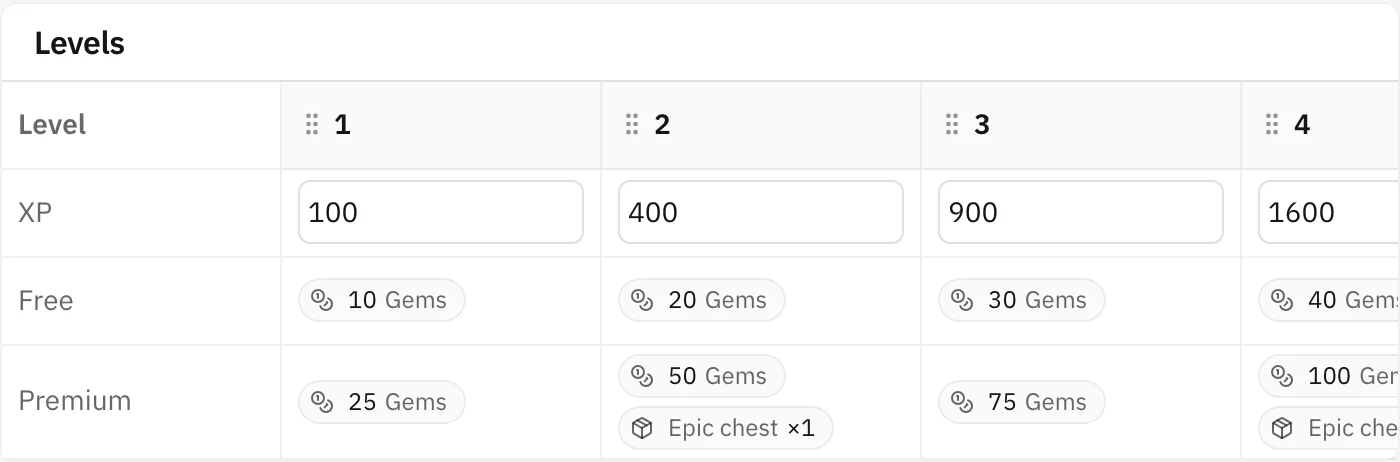

Children

"children": [
  { "title": "Levels", "resource": "levels", "match": { "showcase": "$row.slug" },
    "layout": "track", "orderField": "level", "threshold": "xp",
    "lanes": [{ "title": "Free", "field": "freeReward" }, { "title": "Premium", "field": "premiumReward" }] },

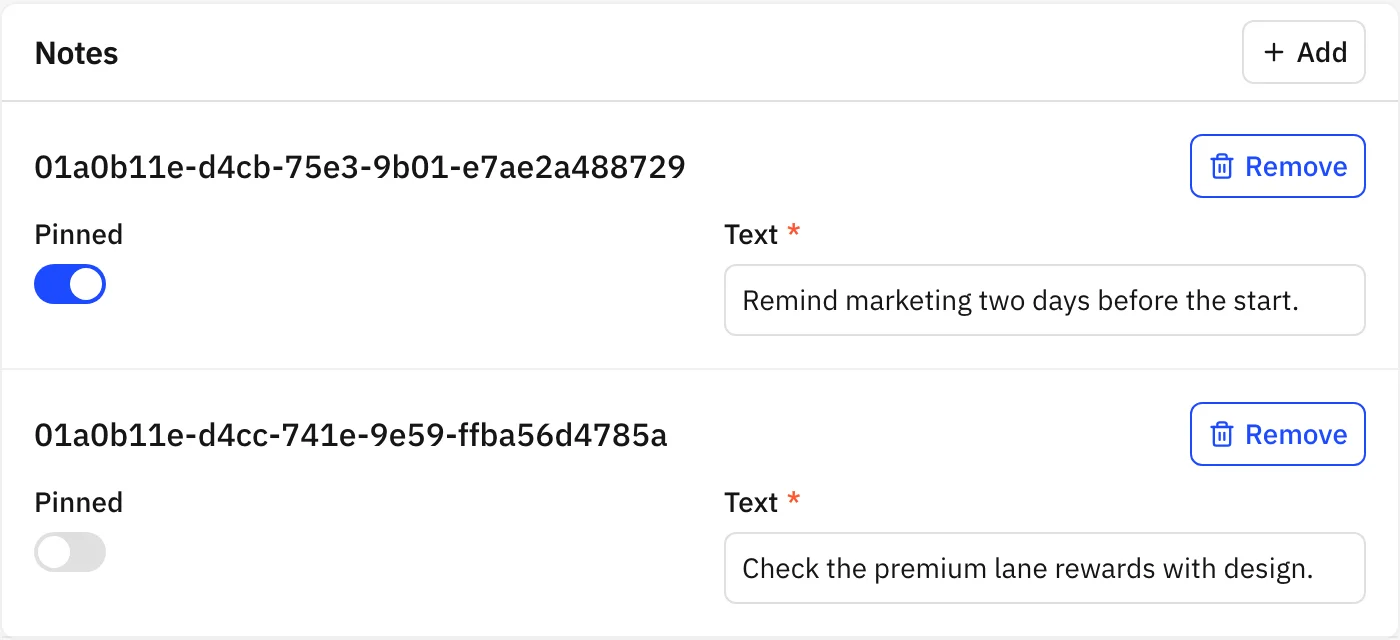

  { "title": "Notes", "resource": "notes", "match": { "showcase": "$row.slug" }, "layout": "list" }
]

• title, resource and match are required. match maps a child field to $row.id or $row.<field>; new child rows get those values filled in.
• layout is table (default), list or track. track requires orderField.
• Children accept validate, preview and options hooks, but not save.
• Without a save hook the dashboard writes the row and its children in one transaction, at most 100 child operations, all or nothing.

UI hooks

"hooks": {
  "validate": "validate",
  "preview": "preview",
  "options": { "tier": "tierOptions", "objectives.*.counter": "counterOptions" },
  "save": "saveShowcase"
}

Every name must be a declared function with trigger admin. validate, preview and options run as a dry run — reads work, writes are rolled back. save runs committed, so one hook can write a row and its children in a single transaction.

Hook	Called	Arguments	Returns
validate	before save and 500 ms after the last edit	{ values, rowId, children }	{ errors: { "<path>": "<message>" } }, paths use /, e.g. levels/3/xp
preview	on open and 500 ms after the last edit	{ values, rowId, children }	{ widgets: [...] }, rendered in the side panel
options	when the select opens, and 300 ms after the search text changes	{ field, search, values }	{ options: [{ value, label, icon? }] }
save	on save, replaces the default write	{ values, rowId, children }	{ id } or a business error; invalid_parameters with { errors } maps back to fields

options keys are field paths where * matches a list index; the hook receives the concrete path in field. It applies to string, enum, ref and number fields.

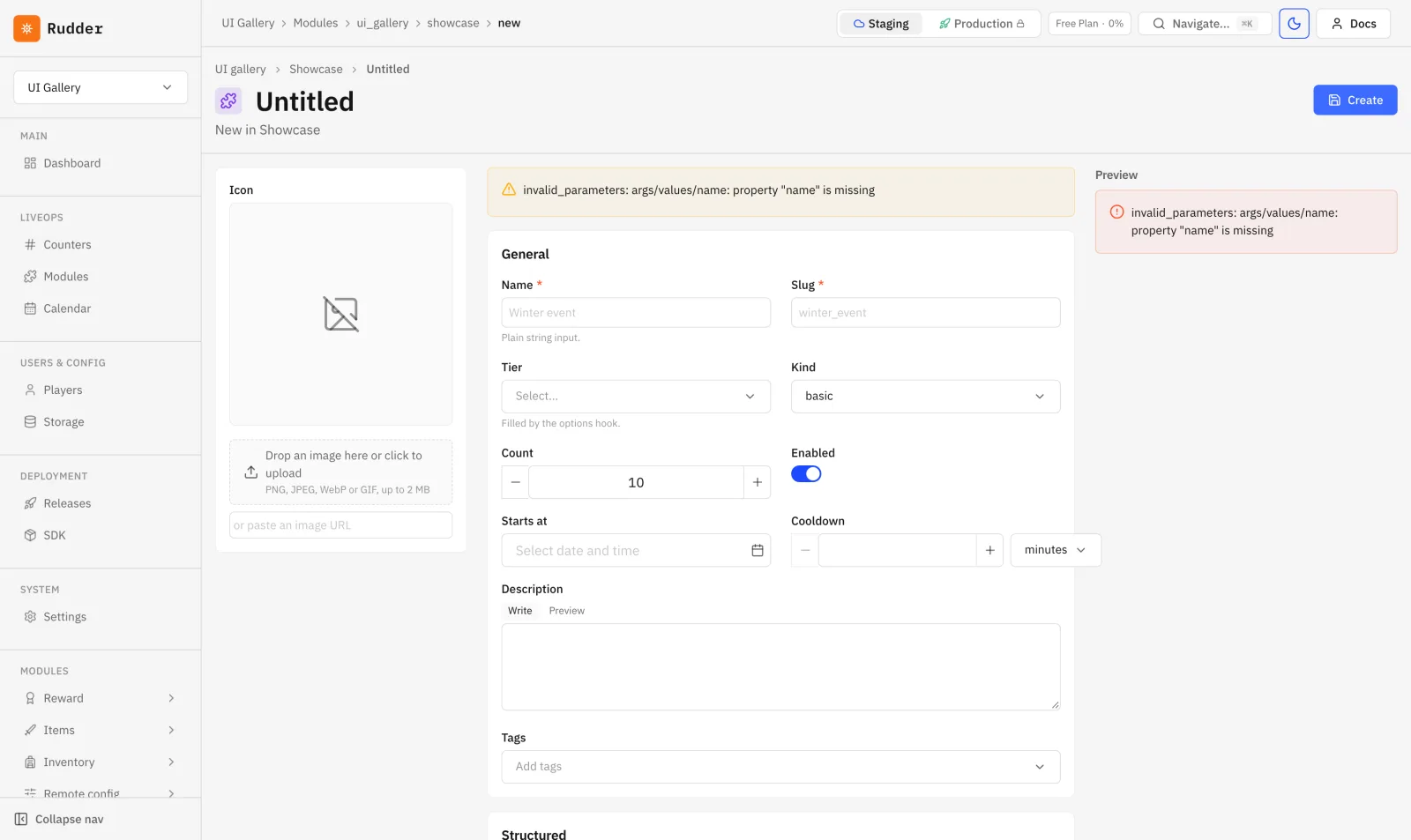

An error returned by validate:

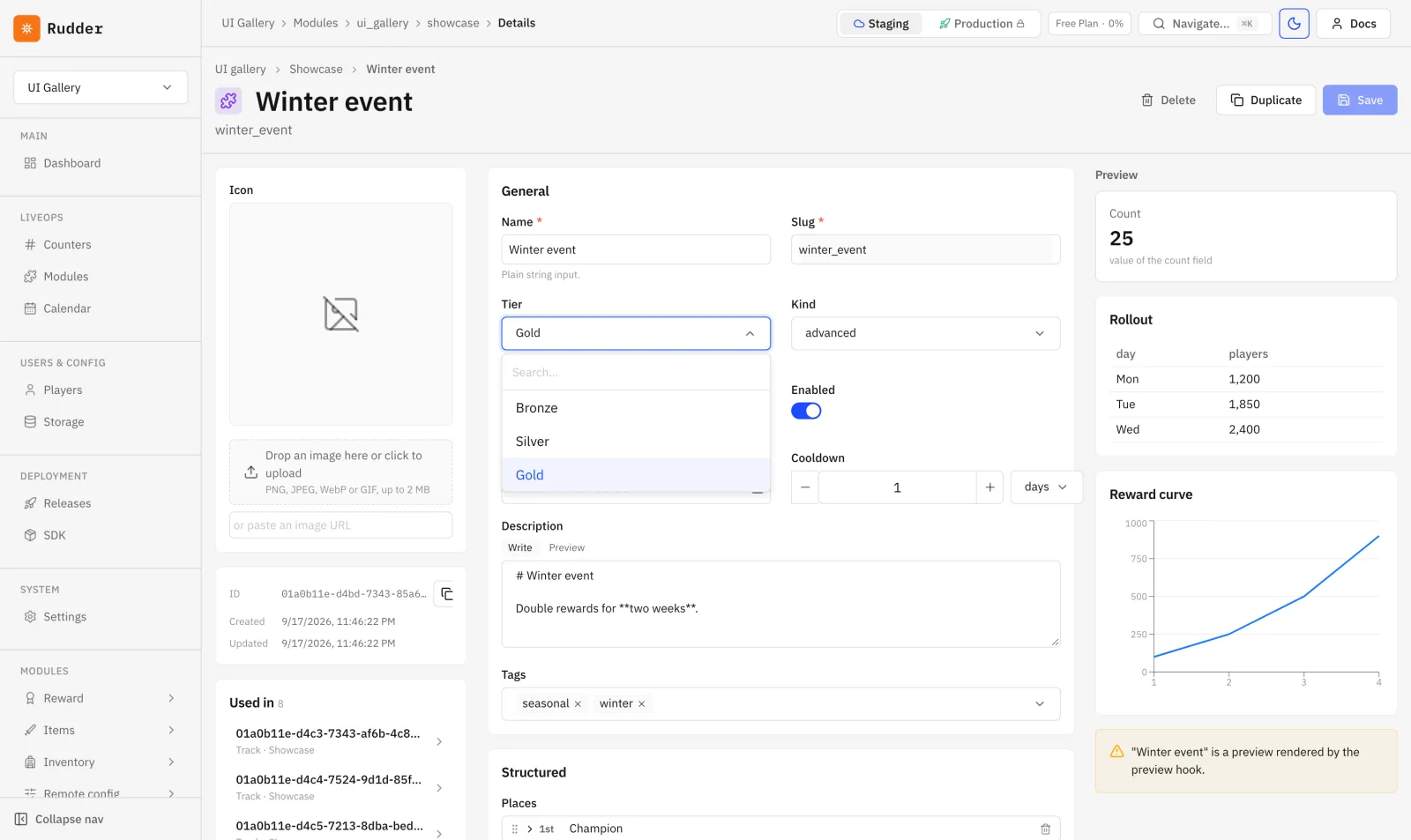

A select filled by options:

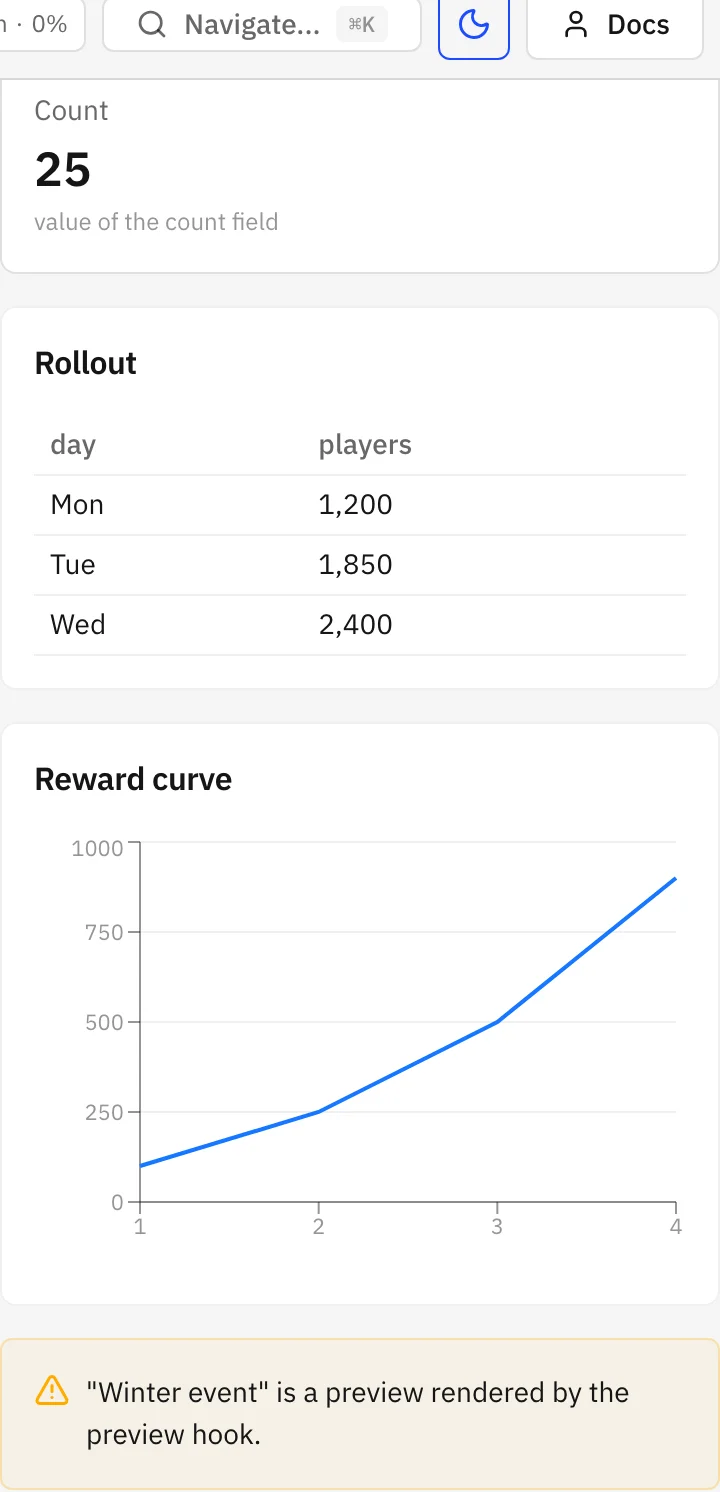

The panel preview renders (stat, table, chart and alert widgets):

Widgets

Type	Allowed on	Keys	Function result
stat	page, detail, dashboard, player	title, function, input	{ value, hint? } or a scalar
table	page, detail, dashboard, player	title, function	{ title?, columns, rows }
chart	page, detail, dashboard, player	title, function	{ title?, kind: "line" or "bar", series: [{ name, points: [{ x, y }] }] }
alert	page, detail, dashboard, player	title, function	{ level: "info", "warning" or "error", text }
markdown	page, detail, player	title, body	static
tabs	page, detail, player	title, tabs: [{ title, widgets }]	—
action-button	page, detail, dashboard, player	title, function, confirm, input	anything, shown as a toast
resource-table	page, detail, player	resource, columns, sort, match	—
results	detail only	resource, score, order, player, match	—

match ({ "<target field>": "<field of the detail row>" }) works only inside a detail. input is a nested field schema rendered as a form with the editors above. Every function must be declared with trigger admin.

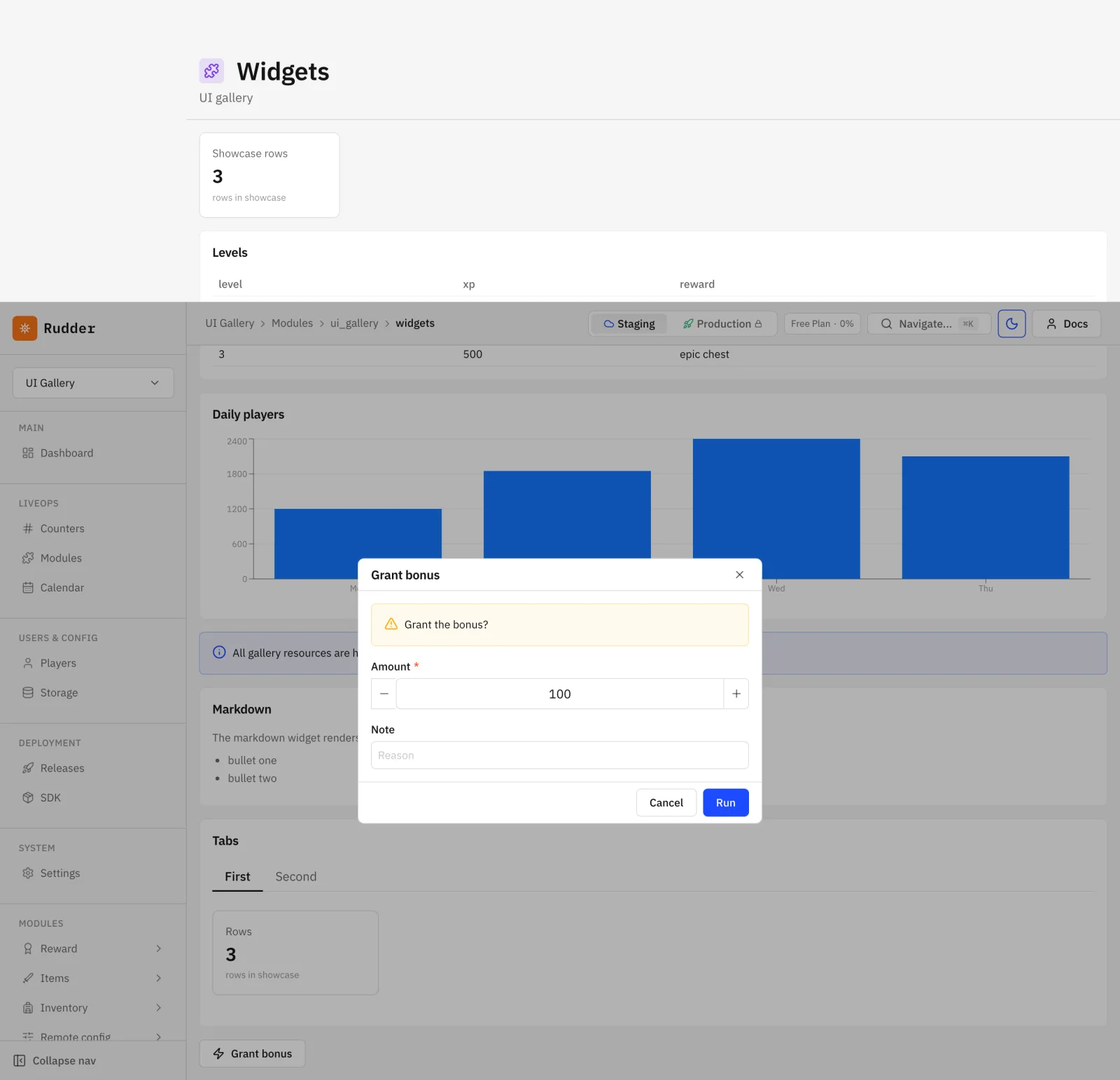

An action-button with input opens a form modal:

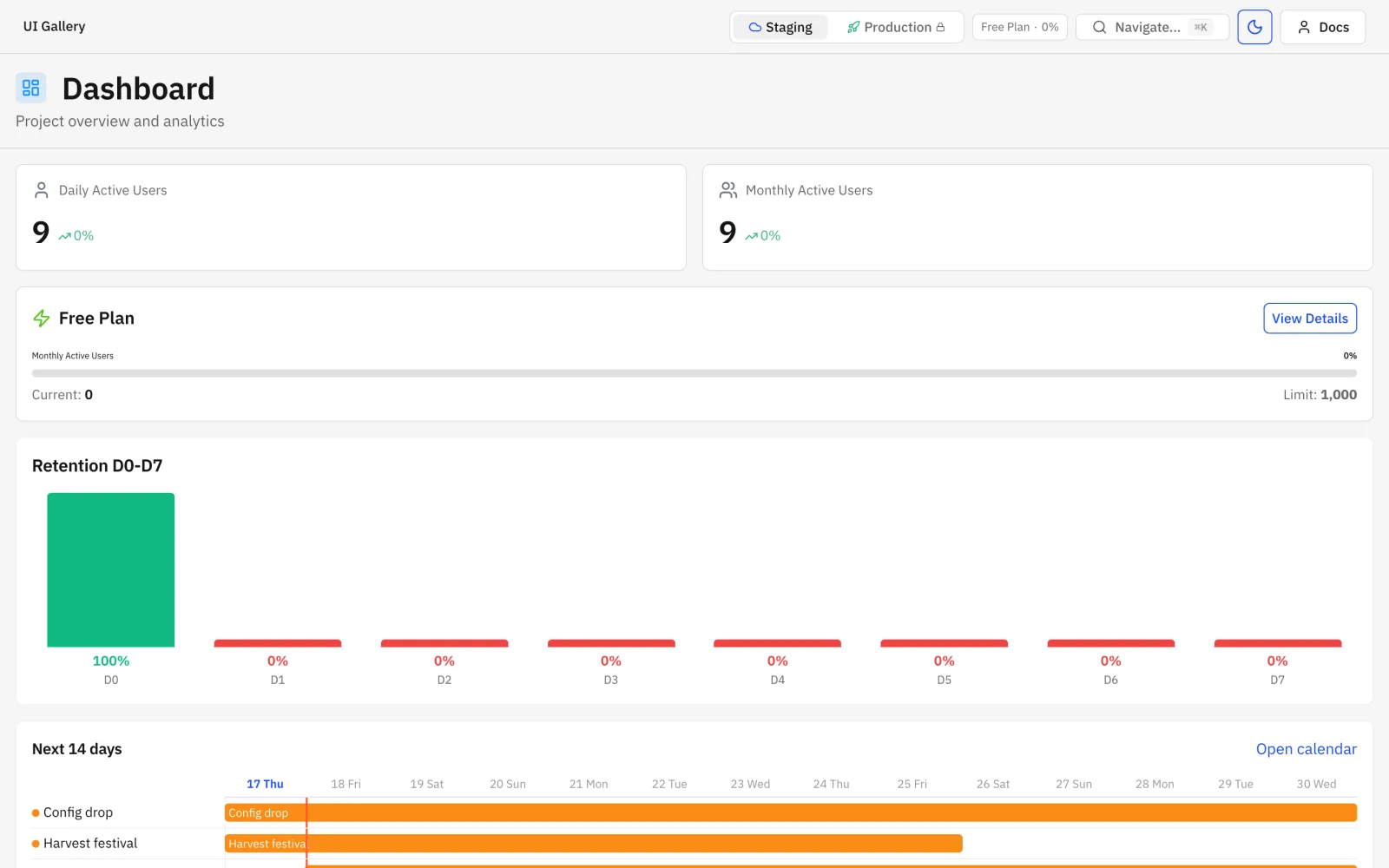

Dashboard blocks:

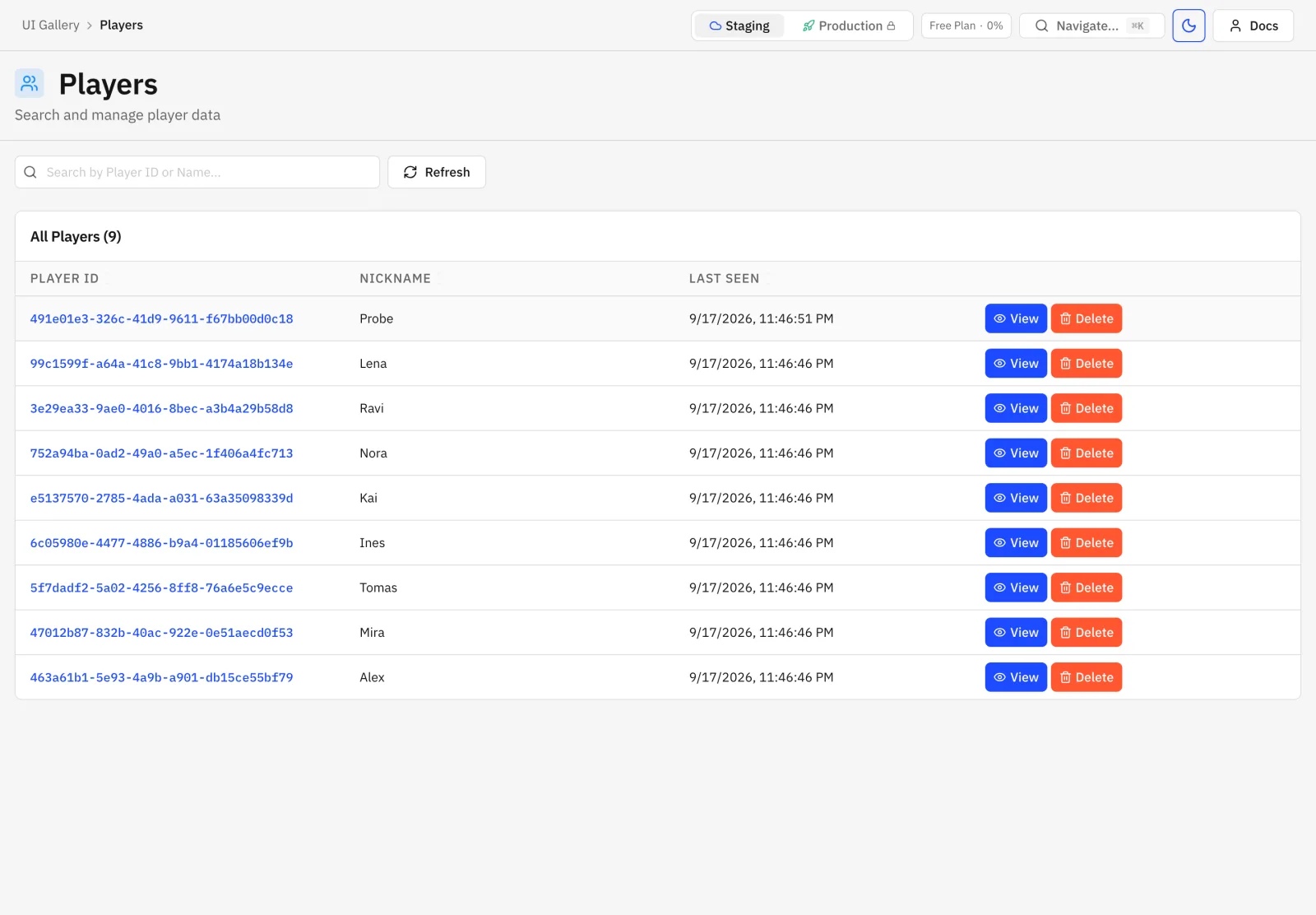

Player page blocks:

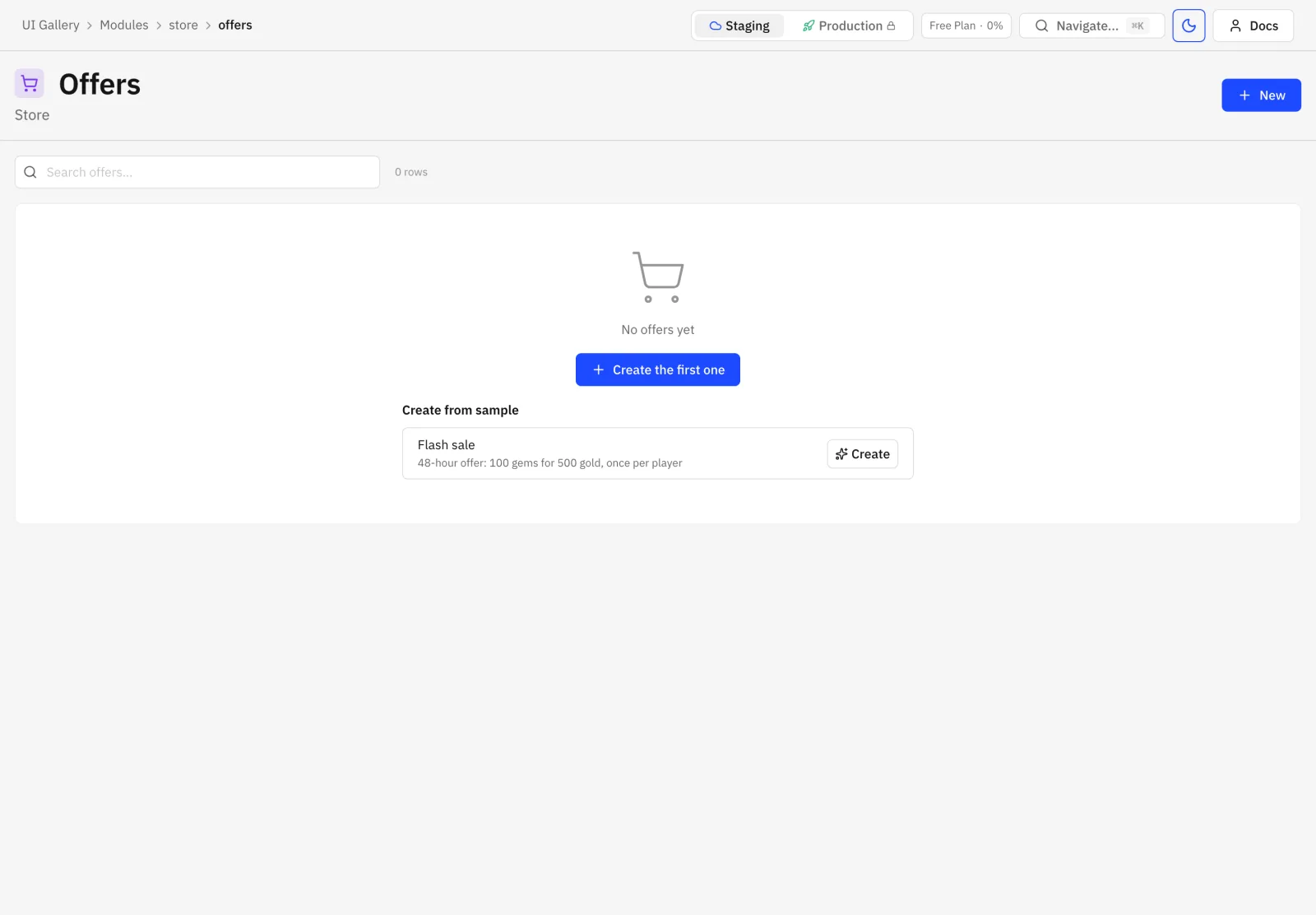

Samples

"samples": [
  { "key": "flash_sale", "title": "Flash sale",
    "description": "48-hour offer: 100 gems for 500 gold, once per player",
    "rows": { "offers": [{ "name": "Flash sale", "slug": "flash_sale",
                           "schedule": { "start": "$now", "end": "$now+2d" } }] } }
]

Sample rows are validated at publish against the resource schemas. Placeholders: $now and $now+<n>d|h; refs use the target’s refKey value. Creating a sample writes every row in one transaction, in the order the resources are listed. An empty page offers the module’s samples:

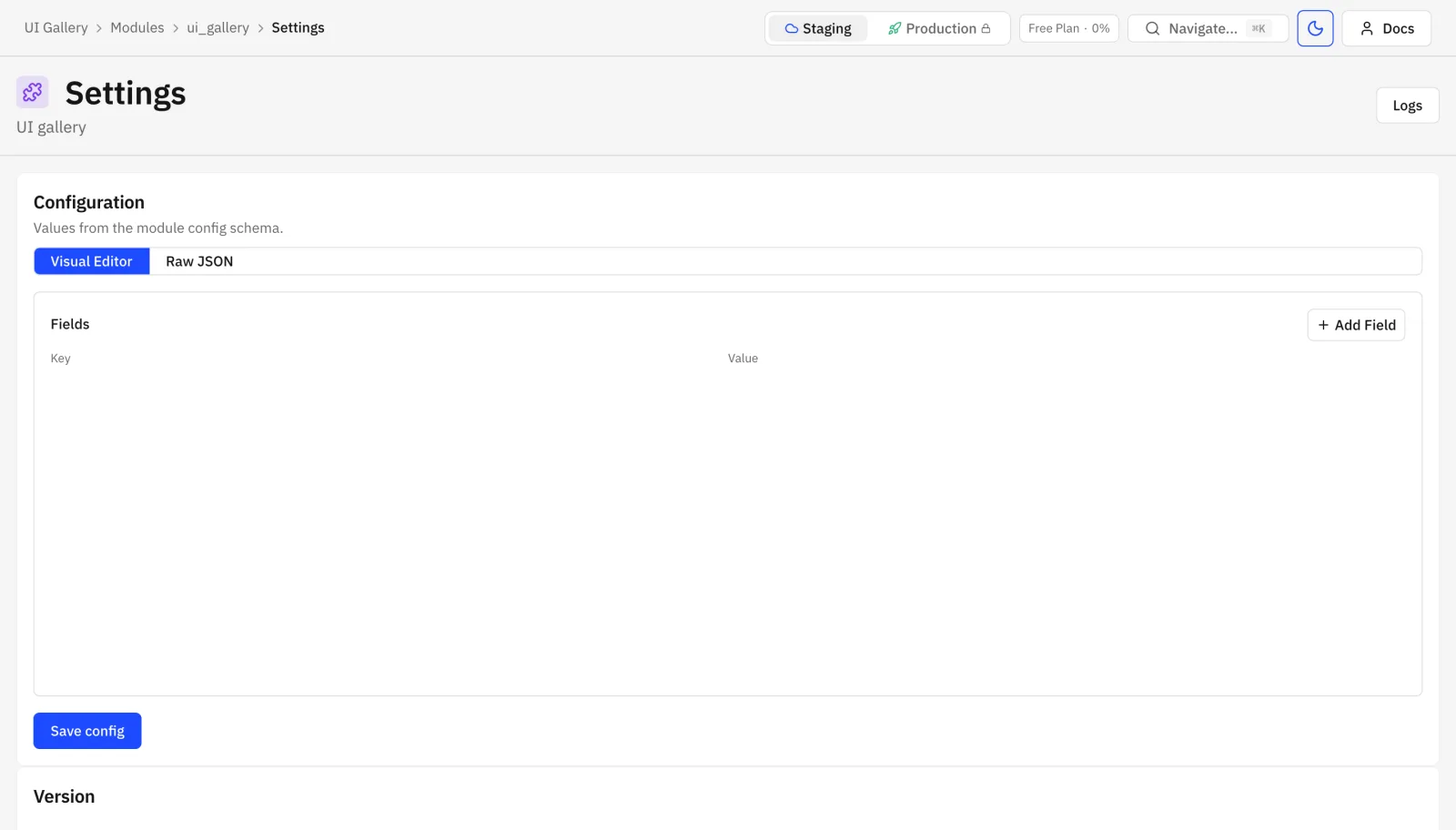

Module settings

Every module also gets the reserved Settings page: config schema form, enable or disable, update, eject, uninstall, download source.

What publish rejects

• admin.palette other than 1 or 2, or palette-2 features with palette 1.
• A page slug that is empty, duplicated or settings.
• A page with both or neither of resource and widgets, or hooks on a widgets page.
• A missing resource or field, or a field of the wrong type: filters outside enum/bool/list/ ref, card.image not an image, schedule not a schedule, orderField, threshold and score not number, color not an enum.
• schedule/color without timeline, threshold/lanes without track, score/order/player without results, match or a results widget outside a detail.
• detail.key on a field that is neither unique nor a slug.
• A child block without title, resource or match, a match source that is not $row.id or $row.<field>, a track child without orderField, or a child with a save hook.
• A hook, bulk action or widget function that is missing or does not have trigger admin.
• player: true or a player resource-table on a resource that is not player-scoped.
